PDC SENSOR SKY
LIGHTNING ARRESTER WITH NON-ELECTRONIC IGNITION DEVICE.
New generation lightning arrester with non-electronic PDC device designed to advance the ignition. Coverage radii up to 120 m (depending on the emission times 25 μs, 45 μs, 60 μs).Complies with NF C 17-102:2011, UNE 21186:2011, CTE SU 8.

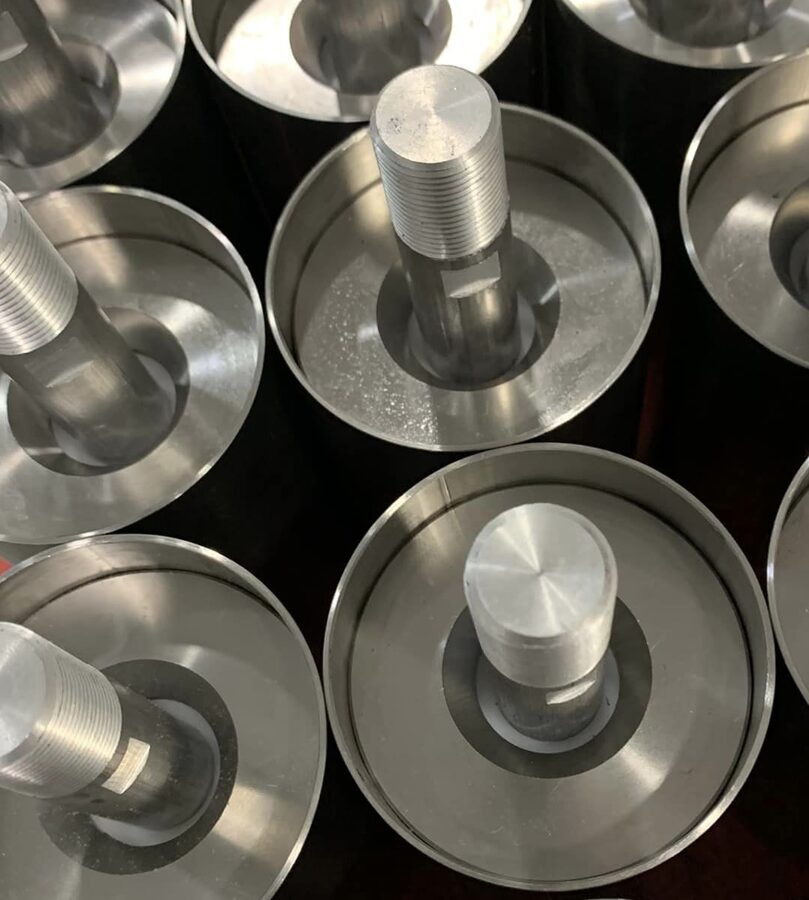

- Manufactured in stainless steel AISI 316.
- High temperature resistance.
- Active external lightning protection for all kinds of structures and open areas.
- 100% discharge efficiency.
- Protection level classified as very high.
- Guarantee of electrical continuity. No resistance to the passage of the discharge.
- Non-electronic lightning arrester; maximum durability guaranteed.
- Withstand current greater than 200kA (10/350µs wave).
- Retains all its initial technical properties after each discharge.
- As it does not incorporate any electronic element, it is not fungible.
- No external power supply is required.
- Guaranteed operation in all atmospheric conditions.
- High resistance to weathering and corrosive atmospheres.
15 YEAR GUARANTEE.
